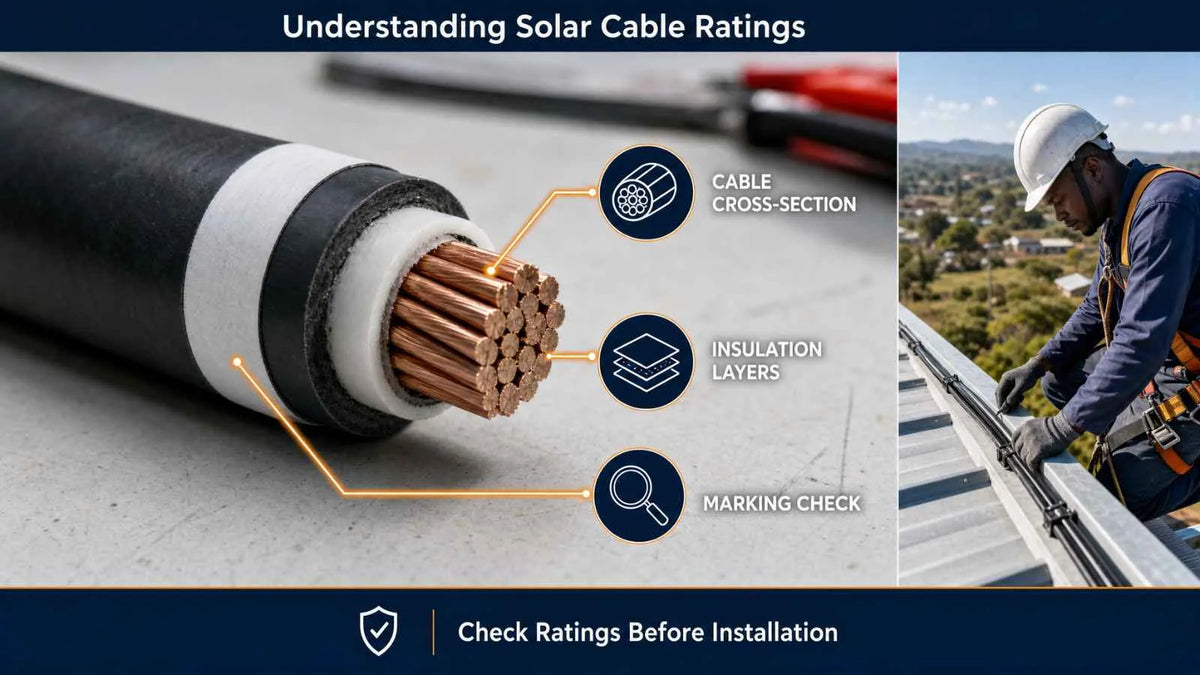

Solar cable ratings Uganda refers to the jacket markings that tell you exactly what a cable can safely handle: conductor cross-section, voltage rating, temperature rating, and UV or standard compliance. Getting these ratings right matters because a solar PV cable in Uganda often runs through hot roof spaces, direct sun, conduit bundles, and high-current DC circuits where small mistakes turn into voltage loss, overheating, or premature insulation failure.
Uganda context: why solar cable ratings matter more than “thicker is better”
A widely cited Uganda solar resource assessment reports roughly 5-6 kWh/m²/day on flat surfaces, which is great for energy yield but harsh on materials that sit outdoors for years. Add equatorial UV exposure and real-world installation realities in Kampala such as roof-sheet heat, tight conduit runs, and mixed-quality supply chains, and “thicker-looking” cable stops being a useful buying rule.
Cable markings are a filter for safety and lifespan, not branding. A proper PV cable marking tells you the electrical limits (so you do not exceed insulation stress), the thermal limits (so the jacket does not cook in a roof space), and the outdoor suitability (so the sheath does not crack in sunlight). Without those markings, you are buying unknowns.
Make one practical move before buying any replacement: pick one existing system (home, school, farm) and photograph the full cable jacket text near the array, near the combiner, and near the inverter. That photo becomes your baseline for verifying ratings when you shop.
What “cross-section (mm²)” means on a solar cable in uganda
A 2023 NFPA electrical fire analysis (based on thousands of reported incidents across the US) highlights electrical distribution and lighting equipment as recurring ignition categories, with overheating and poor connections featuring heavily in investigation narratives. The exact environment differs from Uganda, but the failure mechanism matches what happens in PV wiring: resistance plus current equals heat, and heat destroys insulation and terminations.
Cross-section in mm² is the copper conductor area, not the outside diameter of the cable. In buying terms, mm² is the value most directly tied to resistance per metre, current-carrying capacity, and voltage drop. Two cables can look similar in outer thickness and still have different copper content, which is why jacket print and datasheets matter more than “feel”.
If your procurement decision is only “4 mm² or 6 mm²”, you are missing the inputs that decide the right answer: circuit current, one-way route length, allowable voltage drop, and how the cable is installed (free air, conduit, bundled, hot roof space). For deeper sizing logic tied to distance and loss, use the more detailed guide on choosing the conductor size from current and route length.
How cross-section links to current, distance, and voltage drop (plain-english)
An IEC-focused PV engineering literature review from 2022 to 2024 across utility and commercial PV sites repeatedly shows the same pattern: higher resistive losses lower energy yield, and elevated conductor temperature increases resistance further, so loss and heating reinforce each other. The concept is simple even without the full paper: long runs act like long, thin resistors.
Here is the simplest version. Current flows through copper, copper has resistance, and resistance multiplied by current causes voltage drop and heating. When distance increases, resistance increases. When current increases, heating increases. When temperature increases, resistance increases slightly again. So longer runs or higher currents push you toward a larger mm² even when “the system is the same”.
One practical action works better than estimating by eye: measure the one-way cable run length in metres (panel to combiner, combiner to inverter, inverter to battery if applicable) before selecting mm². If a route snakes around a parapet wall, down a service duct, then across a plant room, measure the route you will actually pull, not the straight-line distance.
Common uganda buying mistake: confusing mm² with “6mm” outer size
A common market problem across East Africa is that low-quality cable can imitate the outer thickness of a reputable PV cable by using more insulation and less copper. In that situation, “it looks thick” becomes a trap: the cable runs hotter, drops more voltage, and can fail earlier even though the jacket appears substantial.
The control point is not jacket bulk. The control point is conductor specification: stranding class, stated mm², copper purity claim, and test evidence where available. Uganda PV procurement specs often require 99.9% copper strands for AC/DC cabling, and that requirement is only meaningful if the conductor is actually copper and actually the stated area.
Take one concrete procurement step: ask for either a datasheet or a cut sample from the roll that clearly shows copper stranding and the stated conductor area, then match that to the jacket marking. If the supplier cannot provide either, treat it as a risk signal and move on.
Voltage rating (VDC/VAC): how to match cable insulation to your PV string
A 2024 NREL field performance and reliability dataset covering a large fleet of PV systems reports that insulation stress, connector heating, and arcing-related faults are more likely as DC voltage and system complexity rise, especially when workmanship and component matching are inconsistent. PV DC behaves differently from AC: once a DC arc forms, it is harder to extinguish, so insulation and component ratings matter more than many buyers expect.
Voltage rating on a cable is the insulation withstand rating, not “how much the system produces”. You can have a 48 V battery system and still damage a low-rated cable if it is installed in a way that overheats it, but the bigger mismatch usually happens on PV strings: modern string inverters commonly operate hundreds of volts DC, and PV cable is typically selected at 1000 VDC or higher to match string design.
In practical Uganda procurement, this is where buyers accidentally mix product categories. PV string cable (array to combiner, combiner to inverter DC input) should be PV-rated, high VDC, outdoor-suitable cable. Battery and inverter DC links may be lower voltage-rated but must handle very high current and flexible routing. If the goal is to understand PV-specific requirements in more depth, the guide on what to check on DC PV cable markings fills in the application boundaries.
“Maximum system voltage” on modules vs cable voltage rating (don’t mix them)
IEC module qualification and safety standards (IEC 61215 and IEC 61730) define “maximum system voltage” as a design limit for how modules can be connected within a PV system, not as a promise of normal operating voltage. The key detail is that module open-circuit voltage (Voc) rises in colder conditions, so worst-case string voltage is higher than what you see on a warm afternoon.
In buyer language: cable voltage rating must exceed worst-case string voltage, not typical operating voltage. You verify this by reading the module datasheet Voc, applying the temperature conditions your installer is using for design, then multiplying by the number of modules in series in one string. The cable, DC isolator, DC breaker, and SPD all need voltage ratings aligned to that maximum, not guesses.
Make one clean procurement action: before buying cable, write down panel Voc and panels-per-string from the design, then only consider cable with a VDC rating comfortably above that calculated maximum.
Practical matching examples: off-grid 48V vs string inverter 600-1000VDC
A 2023 GOGLA market snapshot of pay-as-you-go and off-grid solar (based on reporting from multiple member companies across Africa) shows continued growth in smaller home systems alongside expanding commercial and institutional installations. This is exactly the mix seen in Uganda: a 48 V battery-based system on a home or small office, and higher-voltage PV strings feeding a string inverter at a school, business, or NGO site.
In a 48 V battery-inverter setup, the battery-to-inverter cable can be relatively low voltage rated (procurement specs often cite 300 VDC minimum for some inverter-to-battery DC cabling) but must be sized for high current and short runs with strong terminations. In a string-inverter setup, PV cable from junction or combiner to inverter is commonly specified at minimum 1000 VDC and must be double-insulated, UV-stabilised, and PV-standard compliant. Mixing these categories is how wrong cable ends up on the wrong circuit.
Take one practical step that prevents mix-ups at the shop counter: separate the shopping list into “PV string cable (high VDC, PV standard)” and “battery or DC load cable (high current, short, flexible)”. If you also need clarity on protection devices for each side, the explanation of where DC and AC breakers actually belong helps you avoid a similar rating mistake.
Temperature rating: the marking that predicts cable life on rooftops and in conduits
A 2023 UL polymer ageing study (testing multiple insulation compound formulations under elevated temperature exposure) found that heat significantly accelerates insulation property loss over time, even when UV exposure is controlled. The mechanism is straightforward: higher conductor temperature speeds up chemical ageing, which shows up later as cracking, embrittlement, and reduced dielectric strength.
Temperature rating on solar cable is typically a maximum conductor temperature such as 90°C, 105°C, or 120°C, depending on the cable standard and compound. The rating matters because rooftop cable rarely runs at “average temperature”. Conduit, bundling, and proximity to hot roofing can push conductor temperatures far above ambient, especially on bright days when PV current is highest.
Your practical buying takeaway is that temperature rating is not a minor spec line. It is a predictor of how forgiving the cable will be when installation routing is less than perfect, which is common in retrofits and in buildings with limited cable paths.
Ambient vs conductor temperature: why Uganda’s “21-23°C average” can mislead you
A climate summary on Uganda notes average temperatures around 21°C to 23°C, with hotter north-eastern areas and cooler south-west highlands. The trap is using that average as a design comfort. Roof sheets, ceiling voids, and sun-exposed conduits can run far hotter than the weather report, especially in Kampala’s dense built-up areas where airflow is limited.
In practice, cable selection and routing should assume worst-case local heating at the cable, not a comfortable daily average. Even a good PV cable benefits from thoughtful routing: avoid tight bundles under roof sheets, keep separation from hot surfaces where possible, and use appropriate UV-resistant conduit for exposed sections.
Make one routing action before finalising cable type: trace the full planned cable route and identify the hottest sections (under metal sheets, near inverter exhaust paths, inside crowded conduits), then adjust routing to reduce heat exposure before you spend on larger mm² or higher temperature-rated cable.
Derating in real installs: bundling, conduit fill, and inverter rooms
IEC 60364-5-52 and similar wiring rules treat ampacity as conditional. Current-carrying capacity reduces when cables are bundled, installed in conduit, or run through hotter spaces because heat cannot escape as easily. This is why a cable that seems correctly sized on paper can still run hot in a real installation, especially where multiple strings are grouped and pulled through a single conduit drop.
For procurement, the point is not memorising derating tables. The point is recognising when your installation method demands extra margin. A packed conduit from roof to inverter room, plus a warm inverter space with limited ventilation, is a classic derating scenario.
Take one practical action: count how many current-carrying DC cables share the same conduit or tray section on the planned route. If the count is high, treat it as a design flag to either split routes or select cable with sufficient margin, confirmed by a competent installer or electrician.
UV and weather markings: how to read “UV resistant / sunlight resistant / EN 50618 / IEC 62930”
A 2024 ASTM-aligned outdoor weathering test program summary across multiple polymer specimens reports that UV exposure plus heat cycling can cause jacket cracking and embrittlement that starts at the surface and progresses inward. For PV cables, this matters because a cable can remain electrically functional while the jacket is already failing, and the first visible crack is often late-stage damage.
For Uganda, UV resistance is not a “nice to have” for exposed PV runs. If a cable is on a rooftop, across a parapet, or on an external wall in sunlight, the jacket must be UV-stabilised and ideally certified to a PV cable standard such as EN 50618 or IEC 62930 (markings vary by manufacturer). Generic building wire is not designed for this duty, even if the copper size seems adequate.
One practical installation-planning implication: cable management becomes part of cable rating. If routing forces long exposed runs, plan for UV-resistant conduit, clips, and strain relief. The separate guide to routing and protecting solar cables outdoors is useful when the site layout makes exposure hard to avoid.
Decoding common jacket text: what each marking is telling you
A 2023 TÜV Rheinland PV cable certification overview covering a large portfolio of certified cable products highlights why traceability matters: repeatable compliance relies on identifiable manufacturer markings, standard references, and batch information. In buyer terms, clear jacket printing reduces the chance of silent substitutions during procurement.
On a typical PV cable jacket, markings may include manufacturer name, conductor size (for example 4 mm² or 6 mm²), voltage rating (for example 1.0 kV DC or 1.5 kV DC depending on type), temperature rating, the standard reference (EN 50618 or IEC 62930), and production or batch identifiers. “Double insulated” or equivalent marking signals a PV-specific construction expectation in many specs. If the jacket is blank, generic, or only says “solar cable” without a standard reference, traceability is weak.
Take one clear action at the shop: reject any cable sold as solar cable that has no standard reference printed on the jacket. If a roll has printing only on the outer packaging and not on the cable sheath, treat it as non-verifiable for field checks.
XLPE vs XLPO insulation: what you’re actually buying for heat + UV + flexibility
A 2022 IEEE conference comparison of PV cable insulation families (including XLPE and XLPO variants, across multiple compound samples) notes that both can be formulated for strong thermal endurance, but they differ in flexibility, smoke and halogen behaviour, and long-term ageing profiles depending on the exact compound and certification. The label matters because “XLPE” in building wire context is not automatically the same as XLPE formulated and tested for PV cable standards.
Many PV procurement specs call for XLPE or XLPO insulation with UV stabilisation, single-core, flexible stranding, and double insulation for PV string cabling. This is about surviving heat, sunlight, and mechanical handling during installation. It is also about predictable behaviour in faults, especially where cable routes pass through buildings.
Make one procurement action that improves future traceability: ask for the insulation and sheath material to be stated on the invoice or in the supplied datasheet, then verify it matches the jacket marking when the cable arrives on site.
Compliance and safety in uganda: ratings are only valid if installation and documentation match
Uganda’s Electricity Regulatory Authority states that electrical installation work must be carried out by appropriately permitted personnel under the Electricity Act and installation permit regulations, with specific permit classes that cover specialised work such as solar systems (ERA permit framework). The practical meaning is that cable ratings and standards are not only a buying decision, they are part of a compliant installation record.
In typical PV technical specifications used in projects, several requirements show up repeatedly: 99.9% copper strands for AC/DC cables, PV string cable that is UV-stabilised and double-insulated to a recognised PV standard, and DC protection devices sized so voltage rating exceeds worst-case string Voc and current rating is typically 1.25 to 1.50 times operating current. These are system decisions. A correctly printed cable still fails expectations if it is installed with poor terminations, sharp-edge damage, wrong connector match, or undocumented substitutions.
If procurement includes connectors and termination tools, treat that as part of compliance too. Connector ratings must match cable size and DC voltage, and termination quality affects heating. For connector fit and sealing checks, use the guide on confirming MC4-type compatibility and cable-size range.
Misconception check: “DC and AC cable are interchangeable”
A 2023 UL test summary on DC switching and arc interruption (based on repeated lab test runs) shows that DC arcs persist longer than AC arcs at the same nominal voltage, which is why DC-rated components are specified differently. In the field, a cable that seems “fine” on AC building circuits may have insulation, jacket, or marking limitations for exposed PV DC service, especially at higher string voltages.
The practical risk is not theoretical. Using generic AC building cable on PV strings can raise the chance of insulation breakdown, arcing at poor terminations, and faster jacket degradation outdoors. Even when the copper mm² is sufficient, the application rating can be wrong.
Take one action before termination: label PV positive and negative runs and confirm the cable jacket is marked for PV or DC use, with a stated VDC rating and standard reference, before connectors or lugs are installed.
The simplest way to verify a cable before you pay
A 2023 World Bank evaluation of procurement controls across multiple infrastructure projects found that basic receiving checks reduce downstream defects and rework, mainly by catching non-conforming supplies before installation begins. Solar cabling is a perfect match for this habit because once cable is pulled, clipped, and terminated, replacing it is labour-heavy.
The simplest verification is a fast match between your design inputs and the jacket markings. You are checking that the printed mm² matches the intended conductor size, the voltage rating matches the circuit maximum, the temperature and UV suitability match the route conditions, and the standard reference is present.
Take one practical action that works in real procurement: carry one printed photo of an acceptable jacket marking format to the shop and compare it to the roll in front of you. If the roll cannot pass that visual check, do not rely on verbal assurance.
What to do this week: a one-system “cable rating audit” that prevents costly rework
A 2024 IRENA operations and maintenance survey across operating solar plants reports that small preventive checks and documentation discipline correlate with fewer avoidable outages and faster fault isolation. In smaller Uganda systems, the cost shows up differently, usually as repeat site visits, unexplained low performance, and rework when an expansion is added and existing cable ratings are unknown.
Cross-section, voltage rating, temperature rating, and UV or PV-standard markings work as one package. Cross-section controls resistance and heat. Voltage rating controls insulation stress and arc risk at higher DC voltages. Temperature rating predicts survival in hot routes and bundled conduits. UV and standard markings predict whether the jacket and insulation are built for years of sunlight and weather exposure.
Do one specific thing this week: choose one active installation and record (in a notebook or phone note) the exact jacket markings for each solar DC cable run plus the measured one-way run length, then use that record to buy like-for-like replacements or correctly upgrade when you extend the system.
Before payment on your next cable purchase, confirm these points as a buyer checklist: the jacket shows manufacturer identification and a PV standard reference (such as EN 50618 or IEC 62930), the printed conductor cross-section in mm² matches your design and connector range, the stated VDC rating exceeds worst-case string voltage, the temperature and UV claims match the installation route (exposed rooftop versus conduit), and the cable type is separated correctly between PV string cabling and battery or DC load cabling so voltage and current duties are not mixed.
