Choosing between DC and AC protection is one of the fastest ways to either improve solar safety or accidentally build risk into your system. For DC vs AC breaker Uganda buying decisions, the simplest rule is also the one most often broken: use DC breakers on DC circuits (PV and batteries), and AC breakers on AC circuits (after the inverter).

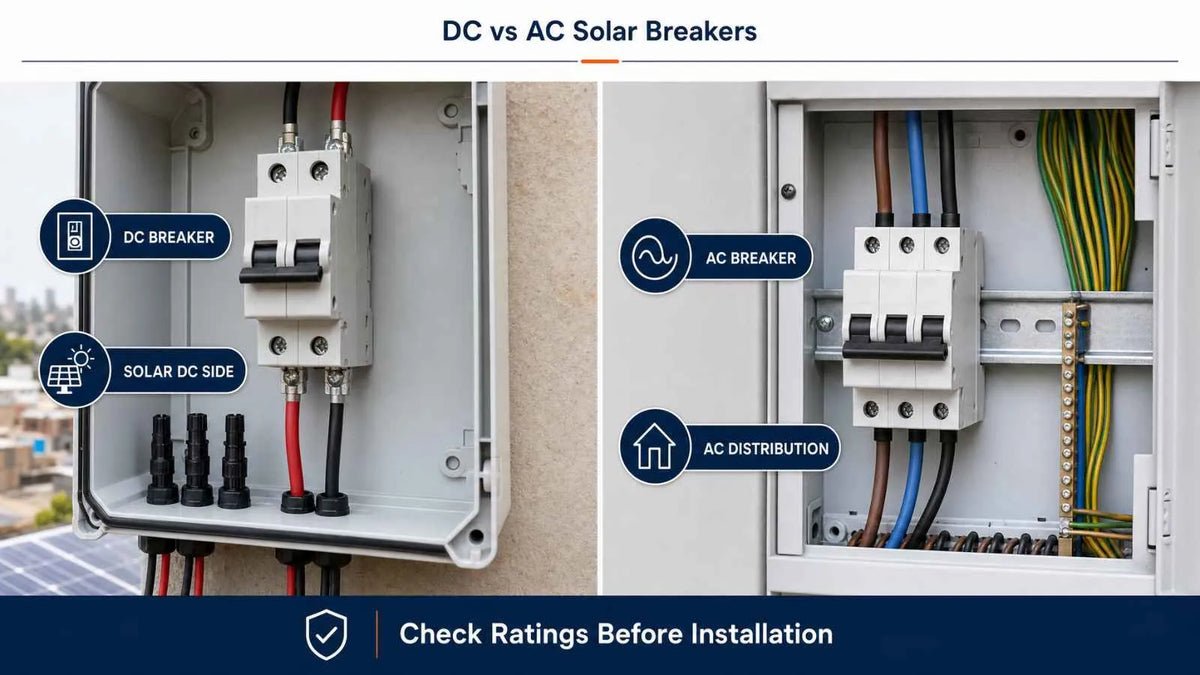

Quick overview: DC breakers vs AC breakers in uganda solar systems
A 2025 Africa solar market outlook that tracks multiple African countries reports Uganda at 84 MW of installed solar capacity by end of 2024, with significant new additions expected. As installations spread from Kampala rooftops to farms and mini-grids, protection-device selection becomes a repeatable procurement task, not an installer afterthought.
In plain terms, a DC breaker is built to interrupt direct current from PV strings and batteries, while an AC breaker is built to interrupt alternating current on the inverter output and building distribution. The current type matters because interruption physics differ, especially arc behaviour. What this means in practice is straightforward: DC breakers belong on PV, charge controller, battery, and inverter DC input circuits, and AC breakers belong on inverter AC output, distribution boards, and grid connection points.
Action: map your system into two zones, “PV/battery (DC)” and “inverter output/load (AC)”, before buying anything.
At-a-glance placement table (where each type belongs)
Industry guidance consistently separates PV-side DC equipment from load-side AC equipment, including combiner box roles and inverter conversion boundaries. For a solar installation, treat the breaker type as part of the circuit identity, not a brand preference.
| Placement point | DC breaker | AC breaker |
|---|---|---|
| PV strings (string protection/isolating) | Yes | No |
| DC combiner box (array combining) | Yes | No |
| Charge controller input/output (where used) | Yes | No |
| Battery bank main protection | Yes | No |
| Inverter DC input (between battery/PV and inverter) | Yes | No |
| Inverter AC output (main AC disconnect/protection) | No | Yes |
| AC distribution board (final circuits, feeders) | No | Yes |
| Grid connection point (grid-tied systems) | No | Yes |
Action: mark these protection points on your single-line diagram before procurement so device schedules are unambiguous.
Safety when interrupting current (arc behaviour and fire risk)
A core reason DC and AC breakers are not interchangeable is arc interruption. A DC arc does not naturally pass through zero like AC, so it can sustain longer and travel further if the device is not designed for DC. Guidance on solar protection devices explicitly warns against using an AC-only breaker on a DC solar circuit because the arc is harder to extinguish without DC-specific design features such as arc chutes and magnetic blowout (DC arc behaviour).
What this means in practice is that the “63A” marking alone does not make a breaker safe on a PV string or battery feeder. A breaker can have the right current rating and still fail to interrupt safely if the voltage rating and AC/DC application do not match the circuit.
Action: refuse any AC-only breaker for PV strings, combiner circuits, or battery circuits even when the amperage appears correct.
What this means in practice for uganda roofs and plant rooms
On a Kampala rooftop, heat buildup inside a small enclosure, UV exposure on cable entries, and dust ingress can all reduce arc control margins. In indoor plant rooms and battery spaces, cable congestion and higher fault energy can increase the consequence of a poor interruption event. The practical decision is not “indoor vs outdoor breaker”, it is choosing a breaker and enclosure combination that keeps temperature, dust, and moisture within the device’s operating assumptions, then installing it in a way that preserves clearances and torque settings.
Action: choose the enclosure and IP rating for your actual site (roof, veranda, plant room, container, dusty farm store) before choosing the breaker model.
Ratings that matter most: voltage, current, and breaking capacity
Breaker procurement succeeds when three ratings are treated as non-negotiable matches to the circuit: voltage rating, current rating, and breaking capacity (interrupting capacity). In solar, voltage rating errors are most common on the DC side, current rating errors are common when cables are chosen late, and breaking capacity is often ignored until nuisance failures appear.
For PV strings, maximum DC voltage is driven by string configuration and the panel open-circuit voltage (Voc), including a cold-weather uplift factor. For inverter output, AC voltage is typically 230 V single-phase or 400 V three-phase depending on system design. For fault levels, the prospective short-circuit current differs by location: battery circuits can deliver extremely high currents, and grid-tied AC circuits can see high fault levels depending on supply impedance and proximity to transformers.
Action: calculate your maximum DC voltage (string count multiplied by corrected Voc) and write it on your bill of materials next to every DC protection device.
DC voltage rating (why 250V/500V/1000V DC is not optional)
DC voltage rating is the fastest filter for whether a breaker belongs on a given PV string or combiner output. Solar DC breaker guidance commonly lists 500 V, 600 V, 800 V, and 1000 V DC as typical ratings, and the rule is simple: the breaker voltage rating must be at least the circuit’s maximum DC voltage (typical DC ratings). If the rating is too low, interruption can be unreliable, and failure modes can include welding contacts or sustained arcing.
In the Uganda accessories market, 500 V DC combiner boxes are common for many string-based designs, but higher-voltage architectures exist, especially as larger rooftops and commercial systems push toward longer strings and fewer parallel circuits. Treat the breaker as a voltage device first, then a current device.
Action: select a DC breaker with a voltage rating comfortably above your corrected string Voc, not equal-by-guessing.
AC current rating (matching inverter output and cable size)
On the AC side, the breaker is usually doing two jobs: protecting the cable and providing overcurrent protection coordinated with downstream circuits. The key procurement habit is to anchor the breaker selection to the conductor ampacity and installation method (conduit, trunking, clipped direct, buried), then confirm the breaker still supports the inverter’s continuous AC output without nuisance tripping.
If cable sizing is still undecided, the breaker decision is premature. Cable cross-section, route length, and installation environment determine heating and voltage drop, and those determine safe current. This is where keeping cable work and protection work connected saves rework, especially on long runs to remote distribution boards or pumps. For deeper cable sizing decisions, keep a separate reference for how current and distance change cable choice.
Action: set the AC breaker to protect the cable first, then confirm it still supports the inverter’s continuous output.
Breaking capacity (kA) and why it changes between DC and AC sides
Breaking capacity (often shown as kA on MCBs, or Icu/Ics on MCCBs) is the “can this device safely interrupt the worst fault it might see” number. It is not interchangeable across voltages and not guaranteed across AC and DC. The decisive difference is that grid-connected AC distribution can experience higher prospective fault currents than small off-grid outputs, while battery circuits can deliver extreme fault currents for short durations if cables are short and impedance is low.
Procurement-wise, breaking capacity is also a documentation issue. A branded marking without a traceable test basis is hard to defend during handover or troubleshooting. For commercial sites, this ties directly into broader procurement checks covered under commercial protection expectations.
Action: ask for the breaker’s tested breaking capacity at your system voltage, then keep a photo of markings and any conformity evidence in the project file.
Where each breaker belongs in the solar system (by component)
A key quality problem in off-grid and rooftop installations is misplacing protection, either using the correct device in the wrong location or skipping a protection point entirely. Clear placement also improves maintenance: a technician can isolate a faulted section without shutting down the entire site.
Treat each component boundary as a decision point. PV strings and combiner outputs stay DC. Battery banks stay DC. The inverter is the conversion boundary. After the inverter output, circuits are AC and should be protected using AC-rated devices sized to the distribution design.
Action: walk the site with the single-line diagram and label each protection point “DC” or “AC” before installation begins.
PV strings and combiner boxes (DC MCB / fuse + isolator role)
A PV string circuit is typically current-limited compared to batteries, but it is high voltage and can sustain arcing if interrupted poorly. In many designs, a DC MCB in a combiner box is used for string isolation and overcurrent protection, but parallel strings can introduce reverse-current risks where individual string fusing is needed rather than a single breaker sized to the whole array. The decision depends on string count, module Isc, and combiner design.
Also separate isolation from protection. A DC isolator is a switching and safety device for separation, while a breaker provides overcurrent protection to a defined curve. Some products combine functions, but procurement should not assume every “switch” is a protective breaker or that every breaker is an adequate isolator under load.
Action: if your array has parallel strings, confirm string protection is sized per string, not per combined array current.
Battery banks and charge controllers (high-current DC reality)
Battery circuits are the highest consequence DC circuits in most off-grid and hybrid systems. Fault current can be high enough to vaporise a tool, weld conductors, or start a fire if protection is misrated or installed too far from the source. This is where DC MCCBs, correctly rated isolators, and proper enclosure design become more common, especially as battery banks scale.
Battery accessory choices also affect serviceability. A battery rack or cabinet that restricts cable bend radius or blocks access to a main DC breaker makes future maintenance slower and riskier. For the physical planning side, align protection placement with battery rack sizing and access space.
Action: confirm the maximum battery discharge current from the inverter or battery documentation, then choose a DC breaker class and breaking capacity that can interrupt it safely.
Inverter output and AC distribution (AC MCB/MCCB and selectivity)
On the AC side, breaker coordination affects uptime. If the main output breaker trips every time a single downstream circuit faults, a school, office, or workshop loses everything instead of just the affected feeder. Selectivity (discrimination) is about coordinating trip curves and ratings so the closest protective device clears the fault first.
For small systems, simple coordination can still be achieved by correct breaker hierarchy and sensible circuit separation. For larger systems, MCCBs and adjustable trips may be justified at the main output with MCBs downstream.
Action: coordinate the main AC breaker with downstream breakers so common faults do not take down the whole site.
Compatibility and form factor: MCB vs MCCB (DC and AC)
MCBs are common in smaller current ranges and compact distribution boards, while MCCBs are used for higher currents, higher breaking capacities, and applications where adjustable trip settings or accessories (shunt trips, auxiliaries) are required. The decision is not “MCB is residential and MCCB is commercial”, it is whether the circuit current, fault level, and control requirements exceed what an MCB is designed to handle.
On the DC side, MCBs often suit PV string protection and small DC distribution circuits. MCCBs become more relevant on battery mains, large combiner outputs, and larger DC buses. On the AC side, MCBs suit final circuits and small feeders, while MCCBs suit mains and higher-fault installations.
Action: choose MCCB when you need higher current, higher breaking capacity, or adjustable trips, otherwise use an MCB for simplicity and easier replacement.
Poles, wiring direction, and marking (reducing wrong installation)
Pole count and polarity matter more on DC than many buyers expect. Some DC breakers are polarity-sensitive and must be wired with the correct line and load orientation. In solar DC circuits, 2-pole and 4-pole devices are common because both positive and negative conductors may need disconnection, not just the positive. Solar breaker guidance notes that 2P and 4P are widely used for DC isolation of both lines, while 1P is limited to specific low-voltage single-line cases (2P/4P use).
Marking and documentation reduce wrong installation during maintenance years later. Clear “DC PV”, “DC Battery”, “AC Output”, plus device ratings, prevents accidental substitution with an AC-only device.
Action: enforce line-load and polarity markings during installation, then take a photo of the installed breaker labeling for handover records.
Installation environment in uganda: heat, dust, moisture, lightning
Environmental conditions affect breaker performance through temperature derating, corrosion, and enclosure integrity. Rooftop installations can run hotter than indoor panels. Agricultural sites can have fine dust that finds its way into poorly sealed enclosures. Lakeside and high-humidity areas increase corrosion risk on terminals and busbars. Storm exposure increases the importance of coordinated surge protection, earthing, and bonding.
The procurement implication is that breaker rating should not be selected in isolation. Enclosure IP rating, cable gland quality, mounting location (direct sun or shaded), and maintenance access all influence long-term reliability.
Action: apply temperature derating assumptions and choose enclosure and IP rating before finalising breaker current ratings.
Surge protection alongside breakers (what breakers cannot do)
Breakers are for overcurrent and short-circuit protection, not for lightning-induced surges. In higher lightning exposure areas, coordinated surge protection on both DC and AC sides reduces equipment damage and nuisance downtime. Local solar accessory guidance commonly recommends surge arresters on panel inputs in storm-prone conditions (surge arrester advice).
For buyer decisions, treat SPDs as complementary to breakers: a DC SPD belongs at or near the combiner box on the PV side, and an AC SPD belongs at the distribution board on the AC side, matched to the earthing arrangement and system voltage. For deeper SPD rating checks, keep a separate reference for DC SPD selection details.
Action: where lightning risk is high, add a correctly rated DC SPD at the combiner and an AC SPD at the distribution board, and confirm earthing and bonding are part of the scope.
Compliance and permitting in uganda (who can install and how to document)
In Uganda, electrical installation work is regulated, including solar-related switchgear and protection work. The Electricity Regulatory Authority states that installation work may only be carried out by persons with the appropriate permit under the Electricity Act and the 2025 Installation Permits Regulations (appropriate permit). This matters for buyer decisions because incorrect installation is not only unsafe, it can create inspection, insurance, and warranty problems.
Procurement should therefore include installer competence as part of the protection device decision. A correctly rated breaker installed incorrectly, for example wrong polarity on DC or wrong torque on terminals, is still a failure.
Action: confirm the installer’s permit category and validity before procurement, then attach the permit record to your project file.
Minimum documentation for handover (single-line diagram + device ratings)
A safe handover is documentation plus physical labeling. At minimum, keep a single-line diagram that marks every DC and AC protection point, plus a device schedule that records model, voltage rating, current rating, breaking capacity, pole count, and location. Add photos of inside-panel layouts before closing covers. This reduces future guesswork and avoids unsafe substitutions.
Action: create a one-page breaker schedule and store a printed copy inside the distribution board door, with a digital copy saved with project records.
Pricing and long-term value in uganda (what you pay for)
DC-rated breakers often cost more than visually similar AC breakers because interruption requirements are tougher and certification scope differs. Long-term value comes from fewer failures, less nuisance tripping, and faster troubleshooting due to clear labeling and documented ratings. Also consider total installed cost: enclosure, busbars, lugs, glands, labor, and any rework caused by wrong form factor.
When comparing procurement options, treat after-sales support as part of value. Supplier responsiveness affects how quickly a failed breaker can be replaced without leaving a school, clinic, or shop without power for days.
Action: compare pricing per “installed protection point” (device plus enclosure, accessories, and labour), not just breaker unit price.
Counterfeit risk and verification (protecting value)
Counterfeit electrical parts can carry credible-looking markings while lacking tested interruption performance. Verification is therefore a buyer task, not only an installer task. Match the model number on the breaker body to any conformity evidence, check labeling consistency (voltage type, DC marking, polarity marking where relevant), and buy through traceable supply channels.
Action: request a conformity or test document for the exact breaker model, then match the model number and ratings to the markings on the device body before payment is completed.
Use-case recommendations (when to choose DC vs when to choose AC)
System architecture determines protection architecture. In Uganda, a large share of the market is off-grid and mini-grid, with solar used to fill access gaps, and some reports estimate 70% off-grid living conditions as a driver for solar. That context increases the number of battery-based systems, where DC protection is not optional.
The decision rule remains consistent across system types: DC breakers protect PV and battery circuits, AC breakers protect inverter output and building or grid circuits. Differences come from fault levels, current ranges, and whether selectivity and documentation requirements are stricter.
Action: pick the closest scenario below, then copy its breaker placement logic into your design and bill of materials.
Off-grid home or farmhouse (PV + batteries + inverter)
In an off-grid setup, the battery-to-inverter DC circuit is often the highest-current path, and it is commonly installed in tight spaces where accidental shorting risk is higher. Put the main DC protection close to the battery source to limit the length of unprotected cable, then add PV-side DC protection at the combiner or controller as required by string layout. On the AC side, use an AC main output breaker at the inverter output feeding an AC distribution board with appropriately rated final circuit MCBs.
Action: install the main DC breaker within the shortest practical cable run from the battery positive, inside an enclosure that preserves safe access and cable bend radius.
Grid-tied rooftop for business or school (inverter feeding DB/grid)
In grid-tied systems, AC fault levels can be higher, and breaker breaking capacity becomes more prominent on the AC side. Place DC protection and isolation on the PV input side of the inverter as per the array design, then place an AC breaker on the inverter output feeding the main distribution board and grid connection point. Remember that performance and energy export are evaluated on the AC side after conversion, as shown in regional grid-tied studies that describe inverter “DC/AC conversion and grid connection” roles (DC/AC conversion).
Action: verify AC breaker breaking capacity against the site supply fault level information available, especially at larger service entrances.
Mini-grid / larger commercial system (multiple strings, combiner arrays, higher currents)
As the number of strings and feeders increases, standardisation becomes part of safety. Use labelled combiner boxes with documented DC feeder protection per input and per output, and use DC MCCBs where current and fault levels justify them. On the AC side, use coordinated protection so a fault on one feeder does not shut down the entire mini-grid or commercial site. Procurement should prioritise traceable documentation and repeatable part numbers to reduce maintenance variability.
Action: standardise combiner boxes and breaker models per feeder type, then label every DC and AC protection point to match the drawings.
Verdict: which breaker “wins” and where each belongs (clear decision rule)
Guidance across solar protection references converges on one verdict: neither breaker type “wins” overall, because each is designed for a different current type. DC breakers win on DC circuits (PV strings, combiner outputs, charge controller circuits, battery circuits, inverter DC input). AC breakers win on AC circuits (inverter output, building distribution, grid connection). The main avoidable risk is substitution, using an AC-only breaker on the DC side, or misapplying a DC breaker on an AC distribution circuit without documented suitability.
Action: audit one existing or planned solar system and flag any AC breaker used on the DC side (or any DC breaker used on the AC side) before commissioning.
Before payment, use this buyer checklist to lock down compatibility and reduce rework: confirm the circuit type (DC or AC) at the protection point, confirm the breaker voltage rating matches the maximum circuit voltage, confirm the current rating matches the conductor and load design, confirm the breaking capacity is stated at your operating voltage, confirm pole count and polarity requirements for DC, confirm enclosure and IP rating match the installation environment, confirm labeling and handover documentation are included, and confirm procurement traceability to reduce counterfeit risk.
