Yachu 550 W A‑Class Mono Crystalline Solar Panel

Ush 360,000

Tax included Shipping calculated at checkout.

Delivery, Shipping & Returns

1. Delivery Policy

All orders are processed and delivered by our delivery team within 1 day within Kampala. If your location is out of Kampala, please allow an additional day in transit for delivery. If there will be a significant delay in shipment of your order, we will contact you via telephone.

2. Returns (refunds and exchanges)

If you are unhappy with your item, please let us know. We only replace items if they are defective or damaged. If you need to exchange an item for the same item, please inform us via telephone or send us an email at sales@kwttechmart.ug and bring your item to our store.

Our refund and returns policy lasts 14 days. If 14 days have passed since your purchase, we can’t offer you a full refund or exchange. To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.

Bring proof of purchase (receipt, order confirmation page, order details page) and payment method used to make the original purchase.

👋 Need assistance or want to place an order? We're just a WhatsApp message away!

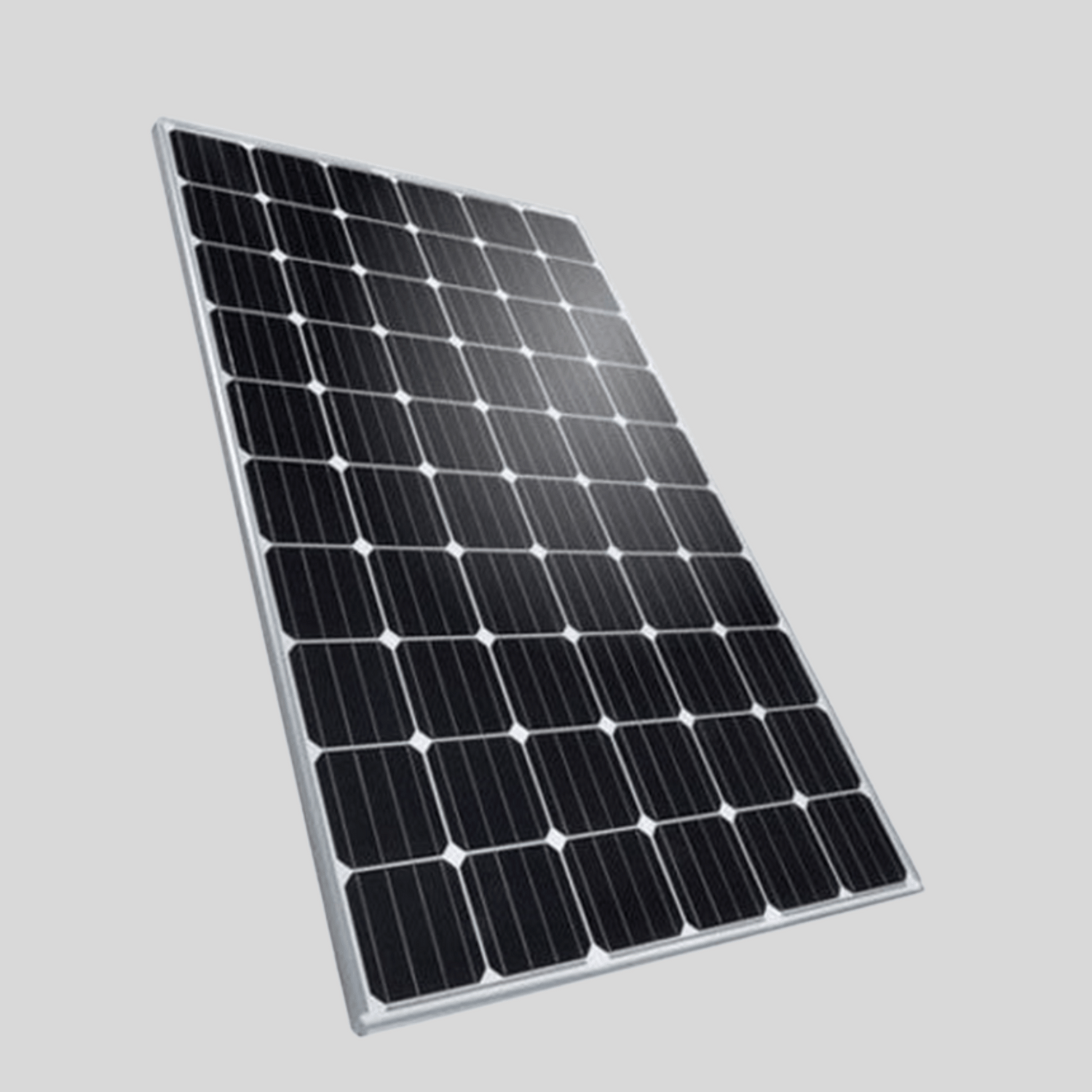

This solar panel delivers 550 W of peak power using A-Class monocrystalline cells, typically arranged in a half‑cell layout of 144 cells. Its 35 mm frame and rugged anodized aluminum casing offer durability for commercial or residential installations.

Specifications

• Power Output (Pmax): 550 Wp with positive tolerance up to +5 W
• Voltage at MPP (Vmp): ~42.0 V
• Current at MPP (Imp): ~13.0 A
• Open Circuit Voltage (Voc): ~49.8 V
• Short Circuit Current (Isc): ~13.7–14.0 A
• Module Efficiency: ~21.1–21.3%
________________________________________
📐 Mechanical Specifications
• Dimensions: 2279 × 1134 × 35 mm
• Weight: ~27–29 kg, depending on frame and glass thickness
• Frame: Robust aluminum frame with anti-corrosion finish
• Junction Box: IP68 rated with bypass diodes and MC4-compatible cables
________________________________________
🔧 Environmental & Performance Details
• Operating Temperature: –40 °C to +85 °C
• Maximum System Voltage: Up to 1500 V DC (IEC compliant)
• Temperature Coefficients:
o Pmax: –0.36%/°C
o Voc: –0.26%/°C
o Isc: +0.043%/°C
________________________________________
🌞 Practical Insights
• Efficiency in the 21% range is typical for half-cell monocrystalline modules in this class
• Weighing nearly 30 kg, these panels are suited for rooftop or fixed ground-mount installations—not flexible setups.
• Buyer reviews suggest being cautious with extremely low-priced modules from lesser-known brands—always check warranty and support details.
________________________________________
📝 Summary Table
Specification Value
Rated Power (Pmax) 550 Wp (+0–5 W tolerance)
Voltage @ MPP (Vmp) ~42 V
Current @ MPP (Imp) ~13.0 A
Open-Circuit Voltage (Voc) ~49.8 V
Short-Circuit Current (Isc) ~13.7–14 A
Efficiency ~21.1–21.3%
Dimensions (L × W × D) 2279 × 1134 × 35 mm
Weight ~27–29 kg
Frame & Junction Box Aluminium frame, IP68 junction box
Max System Voltage Up to 1500 V DC
Temp Coefficients Pmax: –0.36%/°C, Voc: –0.26%/°C
