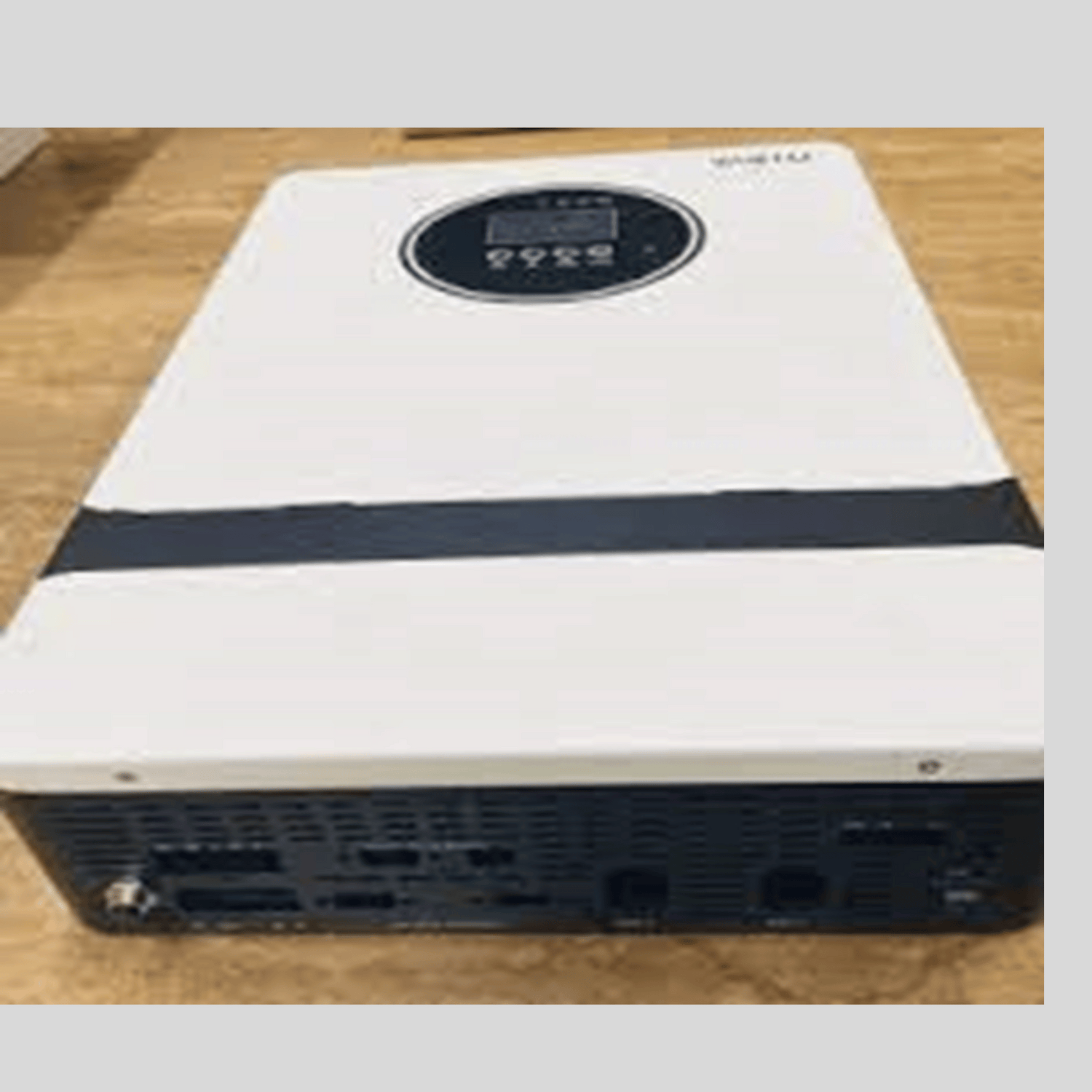

Yachu 3.6kW 24V Hybrid Inverter – 162A DC Output, 100A Max Charger, MPPT 40–450V DC
Yachu 3.6kW 24V Hybrid Inverter – 162A DC Output, 100A Max Charger, MPPT 40–450V DC is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery, Shipping & Returns
Delivery, Shipping & Returns
1. Delivery Policy
All orders are processed and delivered by our delivery team within 1 day within Kampala. If your location is out of Kampala, please allow an additional day in transit for delivery. If there will be a significant delay in shipment of your order, we will contact you via telephone.
2. Returns (refunds and exchanges)
If you are unhappy with your item, please let us know. We only replace items if they are defective or damaged. If you need to exchange an item for the same item, please inform us via telephone or send us an email at sales@kwttechmart.ug and bring your item to our store.
Our refund and returns policy lasts 14 days. If 14 days have passed since your purchase, we can’t offer you a full refund or exchange. To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.
Bring proof of purchase (receipt, order confirmation page, order details page) and payment method used to make the original purchase.
Yachu 3.6kW 24V Hybrid Inverter – 162A DC Output, 100A Max Charger,...
Core Electrical Specifications
Rated Inverter Output: ~3.6 kW AC at 230 VAC (single-phase, 50/60 Hz)
24 V DC Load Output: ~162 A maximum continuous DC terminal output—perfect for DC bus or direct DC loads
wakedelectric.com
Grid AC Charger Capacity: Accepts up to ~100 A AC charger current
MPPT Solar Input Range: ~120–450 VDC (VOC up to ~500 VDC), enabling large PV string flexibility
Solar Charging Capability: MPPT charging current up to ~80–100 A depending on model
🔁 Hybrid Function Modes
Hybrid Power Management: Automatically switches between solar, battery, and grid power depending on preset prioritization (solar-first, battery priority, grid backup)
Fast Transfer Response: Typical transfer time under 20 ms for quasi‑UPS operation
Integrated MPPT Controller: Maximizes PV energy conversion up to 450 V input volts
📋 Features & Environmental Specs
AC Output: 230 VAC @ 50/60 Hz — pure sine‑wave
Efficiency: High conversion efficiency rated up to ~90–98% depending on load
Interface & Connectivity: Supports RS485 & CAN‑BMS; optional Bluetooth/Wi‑Fi smart monitoring
Operating Temperature Range: –10 °C to +50 °C; storage rated –15 °C to +60 °C
Surge Performance: Capable of temporary surge loads up to ~3× rated power for startups and motors
✅ Summary Table
Specification Value
AC Continuous Output ~3.6 kW @ 230 VAC (50/60 Hz)
DC Load Output (24 V) ~162 A DC
Max AC Charger Current Up to ~100 A
MPPT Input Voltage Range ~120–450 VDC (VOC max ~500 V)
Solar Charging Current ~80–100 A (MPPT)
Inverter Efficiency ~90–98%
Transfer Time ~15–20 ms
Communication RS485, CAN‑BMS, optional wireless
Operating Temp Range –10 °C to +50 °C (storage –15 °C to +60 °C)
