Oswal OSP - 9/12, 6inch Submersible Pump for wells, 5.5kw motor, Fl...
Construction
- Submersible motor and pumps for bore wells of 6" (150 mm)
- All sizes of pumps according to the NEMA standard
- OSP series pumps are completely made out of AISI 304 stainless steel material.
- Mixed flow Model: OSP-9, OSP-12, OSP-17, OSP-30, OSP-40, OSP-46, OSP-60
Application
- For water supply
- For irrigation
- For civil and industrial applications.
- For firefighting application
Operating Condition
- Maximum liquid temperature: 45°c
- Maximum quantity of sand 50 gm / m'
- Minimum suction head required: 1.5 meter.
- start per hour 30 at regular intervals.
- Direction of rotation: clockwise as seen from the pump coupling side

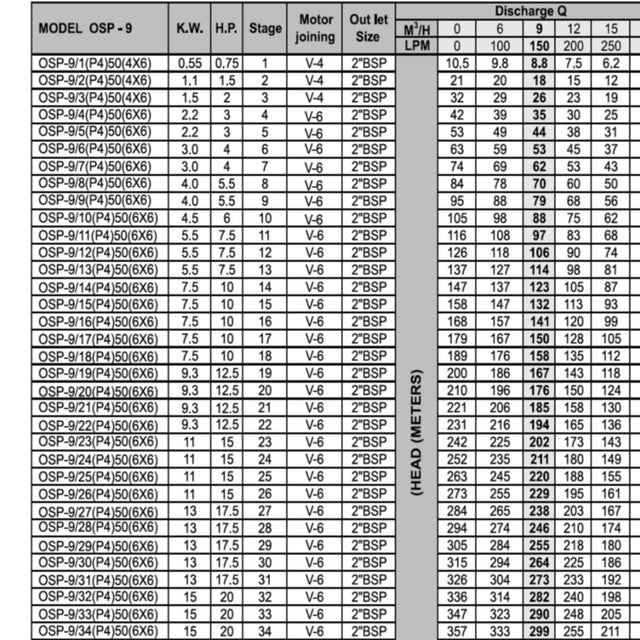

Additional Specifications
Submersible Pump
- Make: Oswal Pumps
- Model: OSP-9
- Flow: 9 m3/hr
- Head: 106 m
- Design speed: 2850 RPM
- Valve: Pump with built – in non-return valve
- Pumped product: Drinking Water
- Efficiency: 58%
- Shaft seal for motor: CER/CAR/NBR
- Pump diameter: 150mm
- of stages: Multistage
Materials
Pump:
Stainless steel (Chrome, Nickel)
- Chromium (Cr) content :17.5 -19.5%,
- Nickel (Ni) content: 8 - 10.5 %,
- Modulus of Elasticity: ≥ 200GPa
- Fatigue Strength: 210-440MPa
- Shear Modulus ≥ 77GPa
- Tensile strength: 580 – 1180 MPa
- Yield strength: 230 – 860 MPa
- Shear Strength: 400 -690MPa
Impeller: Stainless steel (Chrome, Nickel)
- Chromium (Cr) content :17.5 -19.5%,
- Nickel (Ni) content: 8 - 10.5 %,
- Modulus of Elasticity: ≥ 200GPa
- Fatigue Strength: 210-440MPa
- Shear Modulus ≥ 77GPa
- Tensile strength: 580 – 1180 MPa
- Yield strength: 230 – 860 MPa
- Shear Strength: 400 -690MPa
Pump shaft: Stainless steel (Chrome, Nickel)
- Chromium (Cr) content :15-18%,
- Nickel (Ni) content :1.3 -2.5 %,
- Modulus of Elasticity: ≥ 200GPa
- Fatigue Strength: 430-610MPa
- Shear Modulus ≥ 77GPa
- Tensile strength: 890-1380 MPa
- Yield strength: 710-1040 MPa
- Shear strength: 550 – 840 MPa
Coupling: Stainless steel (Chrome, Nickel)
- Chromium (Cr) content :15-18%,
- Nickel (Ni) content :1.3 -2.5 %,
- Modulus of Elasticity: ≥ 200GPa
- Fatigue Strength: 430-610MPa
- Shear Modulus ≥ 77GPa
- Tensile strength: 890-1380 MPa
- Yield strength: 710-1040 MPa
- Shear strength: 550 – 840 MPa
Pump outlet: 1 1/2inch
Extra supply
- Asset manuals detailing Test reports with Characteristic Curves, materials specifications, Operation & Maintenance manuals and Parts book all in English.
