Oswal OSP - 14/30, 4inch Submersible Pump for wells, 5.5kw motor, Flow rate: 12-14m3/hr and Head 92-83m
Oswal OSP - 14/30, 4inch Submersible Pump for wells, 5.5kw motor, Flow rate: 12-14m3/hr and Head 92-83m is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery, Shipping & Returns
Delivery, Shipping & Returns
1. Delivery Policy
All orders are processed and delivered by our delivery team within 1 day within Kampala. If your location is out of Kampala, please allow an additional day in transit for delivery. If there will be a significant delay in shipment of your order, we will contact you via telephone.
2. Returns (refunds and exchanges)
If you are unhappy with your item, please let us know. We only replace items if they are defective or damaged. If you need to exchange an item for the same item, please inform us via telephone or send us an email at sales@kwttechmart.ug and bring your item to our store.
Our refund and returns policy lasts 14 days. If 14 days have passed since your purchase, we can’t offer you a full refund or exchange. To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.
Bring proof of purchase (receipt, order confirmation page, order details page) and payment method used to make the original purchase.
Oswal OSP - 14/30, 4inch Submersible Pump for wells, 5.5kw motor, F...
Construction
- Submersible motor and pumps for bore wells of 4" (100 mm )
- All sizes of pumps according to the NEMA standard
- OSP series pumps are completely made out of AISI 304 stainless steel material.
- Radial flow Model: OSP-2, OSP-3, OSP-5,
- Mixed flow Model: OSP-8, OSP-14
Application
- For water supply
- For irrigation
- For civil and industrial applications.
- For firefighting application
Operating Condition
- Maximum liquid temperature: 45°c
- Maximum quantity of sand 50 gm / m'
- Minimum suction head required: 1.5 meter.
- start per hour 30 at regular intervals.
- Direction of rotation: clockwise as seen from the pump coupling side.
Additional Specifications
Submersible Pump
- Make: Oswal Pumps
- Model: OSP-14
- Flow: 12-14 m3/hr
- Head: 92-83 m
- Design speed: 2850 RPM
- Valve: Pump with built – in non-return valve
- Pumped product: Drinking Water
- Efficiency: 58%
- Shaft seal for moto: CER/CAR/NBR
- Pump diameter: 100mm
- of stages: Multistage
Materials
Pump:
Stainless steel (Chrome, Nickel)
- Chromium (Cr) content :17.5 -19.5%,
- Nickel (Ni) content: 8 - 10.5 %,
- Modulus of Elasticity: ≥ 200GPa
- Fatigue Strength: 210-440MPa
- Shear Modulus ≥ 77GPa
- Tensile strength: 580 – 1180 MPa
- Yield strength: 230 – 860 MPa
- Shear Strength: 400 -690MPa
Impeller: Stainless steel (Chrome, Nickel)
- Chromium (Cr) content :17.5 -19.5%,
- Nickel (Ni) content: 8 - 10.5 %,
- Modulus of Elasticity: ≥ 200GPa
- Fatigue Strength: 210-440MPa
- Shear Modulus ≥ 77GPa
- Tensile strength: 580 – 1180 MPa
- Yield strength: 230 – 860 MPa
- Shear Strength: 400 -690MPa
Pump shaft: Stainless steel (Chrome, Nickel)
- Chromium (Cr) content :15-18%,
- Nickel (Ni) content :1.3 -2.5 %,
- Modulus of Elasticity: ≥ 200GPa
- Fatigue Strength: 430-610MPa
- Shear Modulus ≥ 77GPa
- Tensile strength: 890-1380 MPa
- Yield strength: 710-1040 MPa
- Shear strength: 550 – 840 MPa
Coupling: Stainless steel (Chrome, Nickel)
- Chromium (Cr) content :15-18%,
- Nickel (Ni) content :1.3 -2.5 %,
- Modulus of Elasticity: ≥ 200GPa
- Fatigue Strength: 430-610MPa
- Shear Modulus ≥ 77GPa
- Tensile strength: 890-1380 MPa
- Yield strength: 710-1040 MPa
- Shear strength: 550 – 840 MPa
Pump outlet: 1 1/2inch
Extra supply

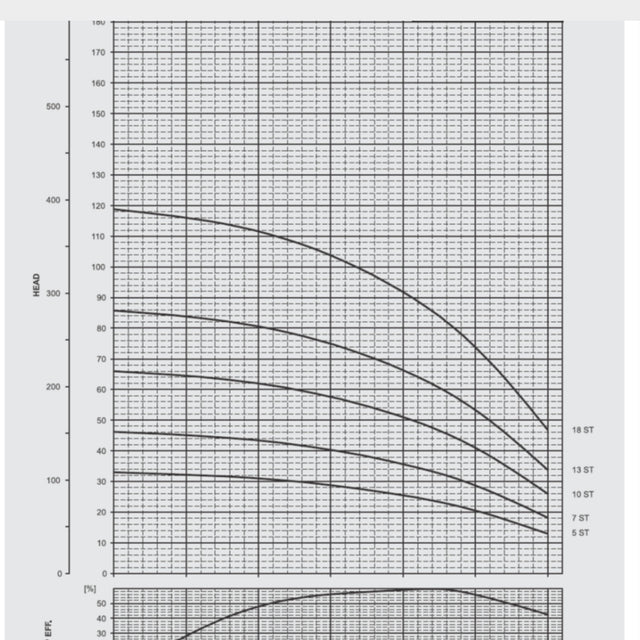

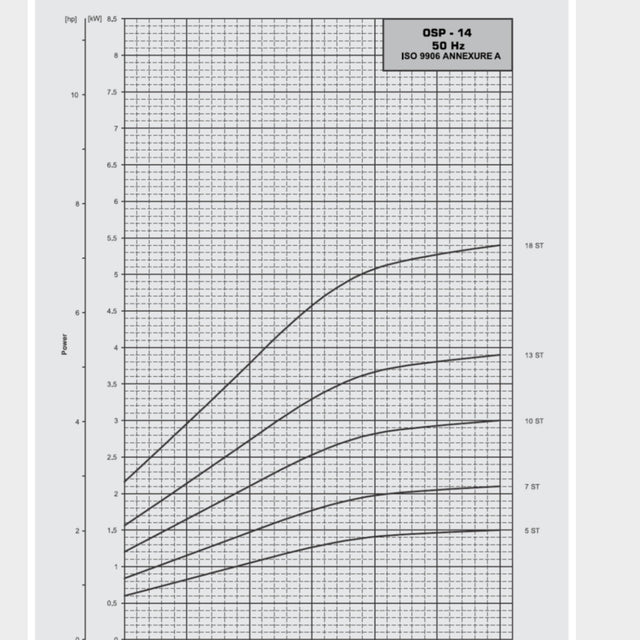

- Asset manuals detailing Test reports with Characteristic Curves, materials specifications, Operation & Maintenance manuals and Parts book all in English.
