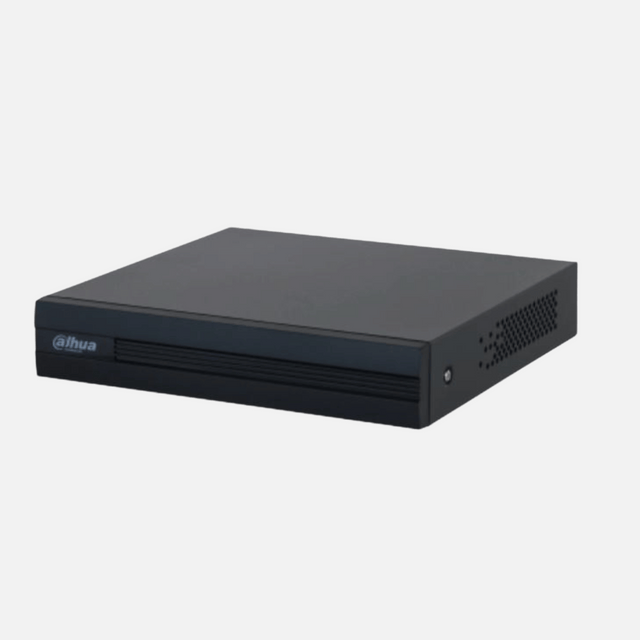

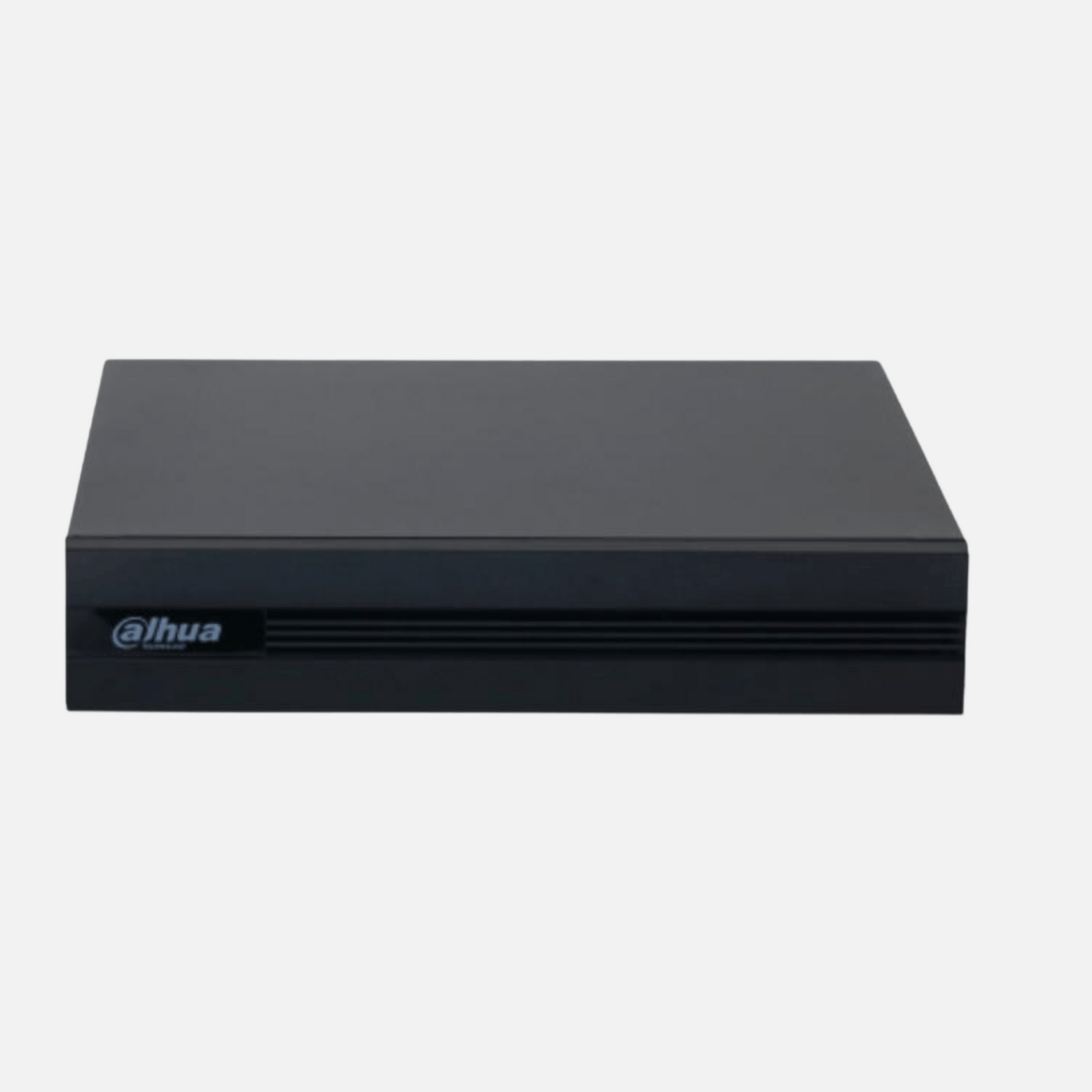

Dahua 4-Channel DVR Penta-brid XVR (1080N/720p) DH-XVR1B04-I – Single HDD, Low-Bandwidth Remote Viewing

Ush 156,000

Tax included Shipping calculated at checkout.

 H.265+/H.265 dual-stream video compression ·
 Supports Full-channel AI-Coding ·
 Supports HDCVI/AHD/TVI/CVBS/IP video inputs ·
 Max 6 channels IP camera inputs, each channel up to 6MP; Max 32 Mbps incoming bandwidth ·
 Up to 4 channels video stream ( analog channel ) SMD Plus

Delivery, Shipping & Returns

1. Delivery Policy

All orders are processed and delivered by our delivery team within 1 day within Kampala. If your location is out of Kampala, please allow an additional day in transit for delivery. If there will be a significant delay in shipment of your order, we will contact you via telephone.

2. Returns (refunds and exchanges)

If you are unhappy with your item, please let us know. We only replace items if they are defective or damaged. If you need to exchange an item for the same item, please inform us via telephone or send us an email at sales@kwttechmart.ug and bring your item to our store.

Our refund and returns policy lasts 14 days. If 14 days have passed since your purchase, we can’t offer you a full refund or exchange. To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.

Bring proof of purchase (receipt, order confirmation page, order details page) and payment method used to make the original purchase.

👋 Need assistance or want to place an order? We're just a WhatsApp message away!

Customizable Alarm Audio : Designed for your convenience, the TiOC alarm can be customized
to meet your needs. It is flexible, allowing you to directly upload your customized audio through
the mobile app and XVR.
 AI Coding : Compared with H.265/H.264, AI coding can reduce more than 50% bit rate and
storage requirements without loss of decoding compatibility, providing clear human and vehicle
details.
 Smart H.265+ Smart H.265+ Codec reduces bit rate and storage requirements by up to 90%,
outranking standard H.264 video compression and eliminating the need to invest in a new
camera.
 Long-distance Transmission : The HDCVI system supports long distance transmission over
coaxial cable and UTP, max. 700 m for 4K/4MP, 800 m for 1080P and 1200 m for 720p.
 Audio over Coax The integrated design can reduce wiring troubles which makes it much more
cost-effective and convenient for installation.
 SMD Plus : With intelligent algorithm, Dahua Smart Motion Detection technology can categorize
the targets that trigger motion detection and filter the motion detection alarm triggered by non-
concerned targets to realize effective and accurate alarm.
 Smart Dual Illuminators : With Smart Dual Illuminators technology, you can select Smart
Illumination Mode for the system to automatically switch between IR mode and white light
mode. It allows white light to be turned on when a target is detected by the SMD Plus/Perimeter
Protection function of AI-enabled XVR. This significantly reduces light pollution at night.
Together with other modes, including IR Mode and White Light Mode, the smart dual
illumination technology can meet the requirements of a wide variety of scenes.
 One-click Arming/Disarming : With just one click, you can enable or disable alarm linkages to
show messages, send emails, output audio alarms and more, through the mobile app and
platform

Specifications

System
Main Processor Industrial-grade processor
Operating System Embedded Linux
Operating Interface Web; Local GUI
SMD Plus
SMD Plus by Recorder 4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video

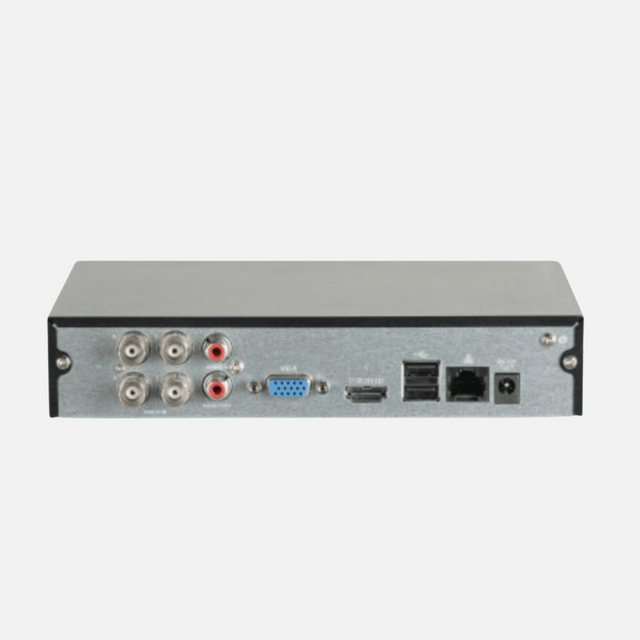

Analog Camera Input 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect

Camera Input

1. CVI: 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps.
2. TVI: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
3. AHD: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.

IP Camera Input

Up to 6 channels of IPC access
2 IP channels by default + 4 channels (analog channels are converted to IP channels)
Incoming bandwidth: 32 Mbps, recording bandwidth: 32 Mbps and outgoing bandwidth: 32 Mbps
*After IP extension is enabled, the AI Function (SMD) will be disabled.

Encoding Capacity

Main stream:
5 MP Mode: 1-ch 5 MP@(1 fps-6 fps); others 5M-N@(1 fps-12 fps)
5M-N Mode: 5M-N@(1 fps –12 fps); 4M-N/1080p@(1 fps–15 fps); 1080N/720p/960H/D1/CIF@(1 fps–25/30 fps)
Sub stream: D1/CIF@(1 fps–15 fps)

Dual-stream Yes
Video Bit Rate 32 kbps–6144 kbps
Audio Sampling 8 kHz, 16 bit
Audio Bit Rate 64 kbps
Video Output

1 HDMI, 1 VGA
HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display When IP extension mode not enabled: 1/4
When IP extension mode enabled: 1/4/6

Third-party Camera
Access Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
Compression Standard
Video Compression AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression G.711a; G.711u; PCM
Network
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto

Registration; IP Search (Supports IP camera, DVR, NVS, etc.)

Mobile Phone Access iOS; Android
Interoperability ONVIF 22.12 (Profile T; Profile S; Profile G); CGI; SDK
